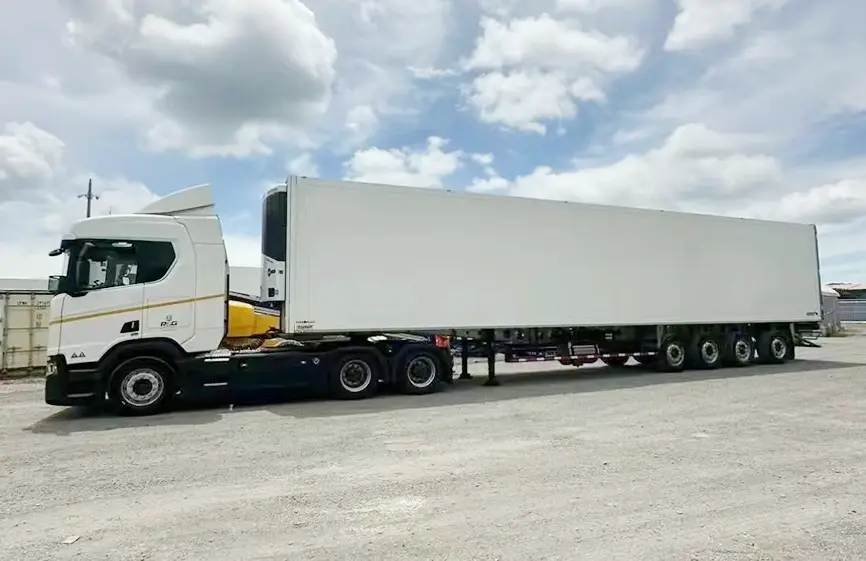

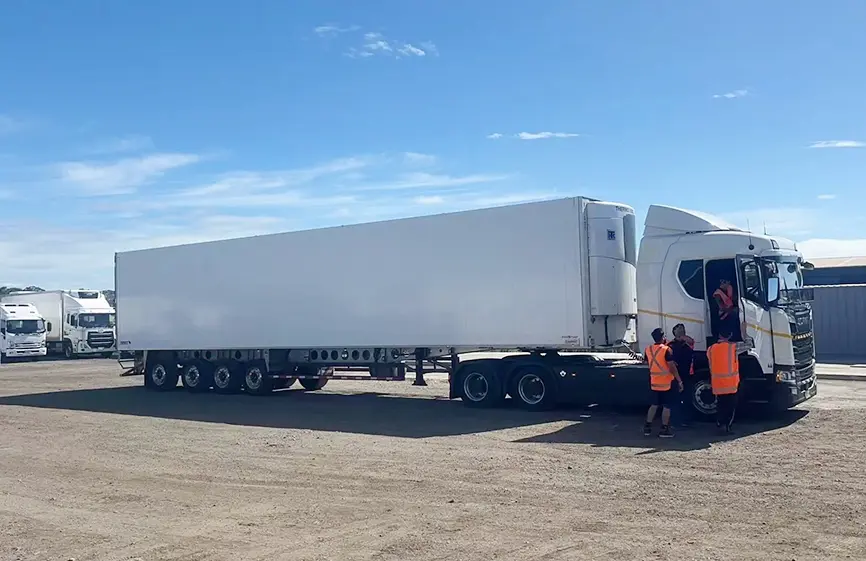

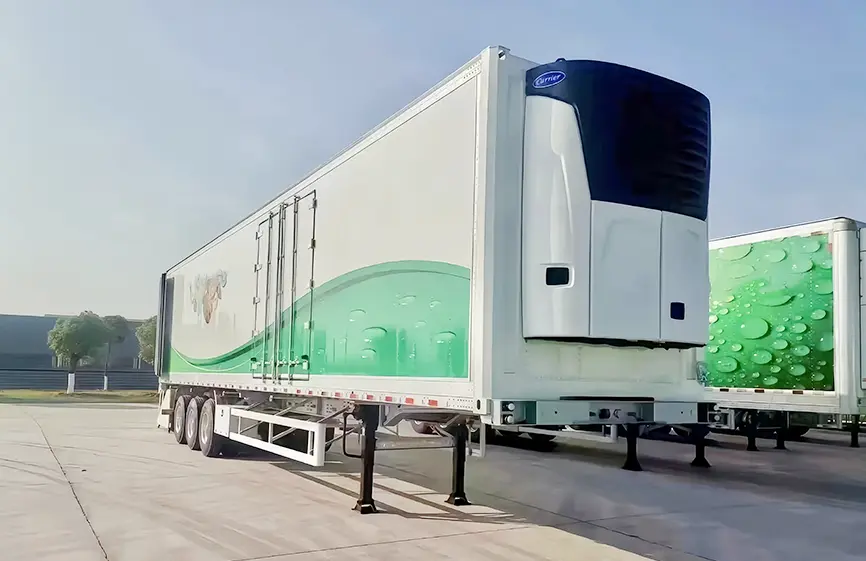

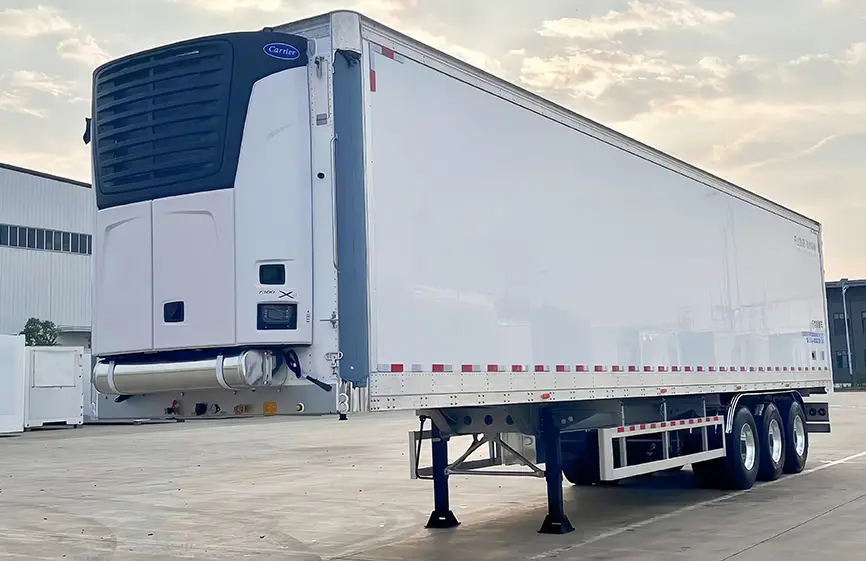

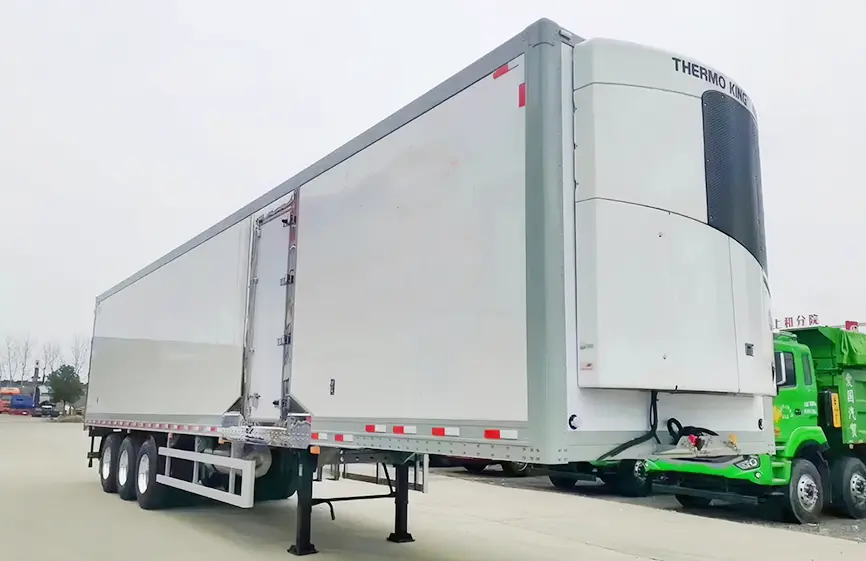

The Shacman Refrigerated Semi Trailer is a specialized transport vehicle designed for the transportation of perishable foods and pharmaceuticals that require low-temperature conditions. Equipped with refrigeration systems inside, the Shacman Refrigerated Semi Trailer not only maintains a constant low temperature but also controls temperature and humidity to ensure the freshness and safety of the cargo. The introduction of the Shacman Refrigerated Semi Trailer has improved the logistics industry and contributed to ensuring food safety and pharmaceutical quality.
The Shacman Refrigerated Semi Trailer offers numerous advantages. First, it ensures that perishable foods and pharmaceuticals remain fresh and safe during long-distance transportation, guaranteeing the safety of food consumed by consumers and the efficacy of pharmaceuticals. Second, since the Shacman Refrigerated Semi Trailer transports specialized cargo, it requires specialized packaging and transportation, presenting both opportunities and challenges for the packaging and transportation industries. Additionally, the introduction of the Shacman Refrigerated Semi Trailer has driven the development of the refrigeration equipment industry, contributing to national economic growth.
It is worth noting that the Shacman Refrigerated Semi Trailer also has environmental benefits. By controlling temperature and humidity, perishable foods and pharmaceuticals can remain fresh and safe for extended periods, thereby reducing food and pharmaceutical waste. Additionally, the Shacman Refrigerated Semi Trailer minimizes environmental pollution by not emitting harmful gases into the external environment.
| Shacman Refrigerated Semi TrailerMain Structure | |
| Product Type | Shacman Refrigerated Semi Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Body Material | The body is made of internal and external glass steel plate, 10CM thick polyurethane insulation board in the middle, high strength and environmental protection natural resin adhesive, pressed by domestic advanced 16m hydraulic plate press, aluminum alloy profile wrapped edge, door frame and door lock parts are stainless steel, aluminum alloy ventilation groove is laid on the bottom plate, and a single side door is opened in the front of the right side of the body. Optional domestic famous brand Kexue or K brand, imported United States Carrier or United States cold King independent refrigeration unit, the lowest temperature can reach -20 degrees, |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3-4-5-6 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
