Shacman X9 4×4 Light Flatbed Cargo Truck

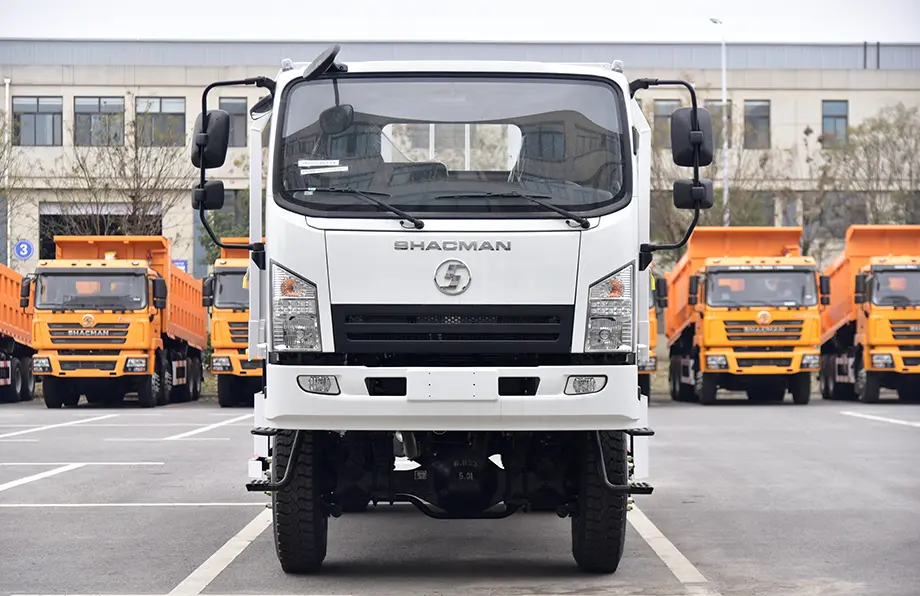

Shacman X9 4×4 Light Flatbed Cargo Truck-3

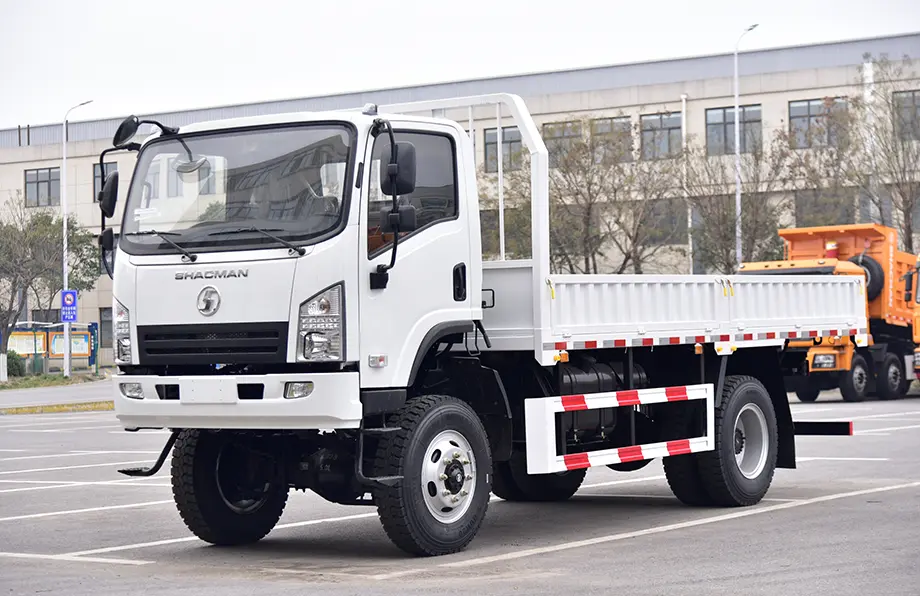

Shacman X9 4×4 Light Flatbed Cargo Truck-1

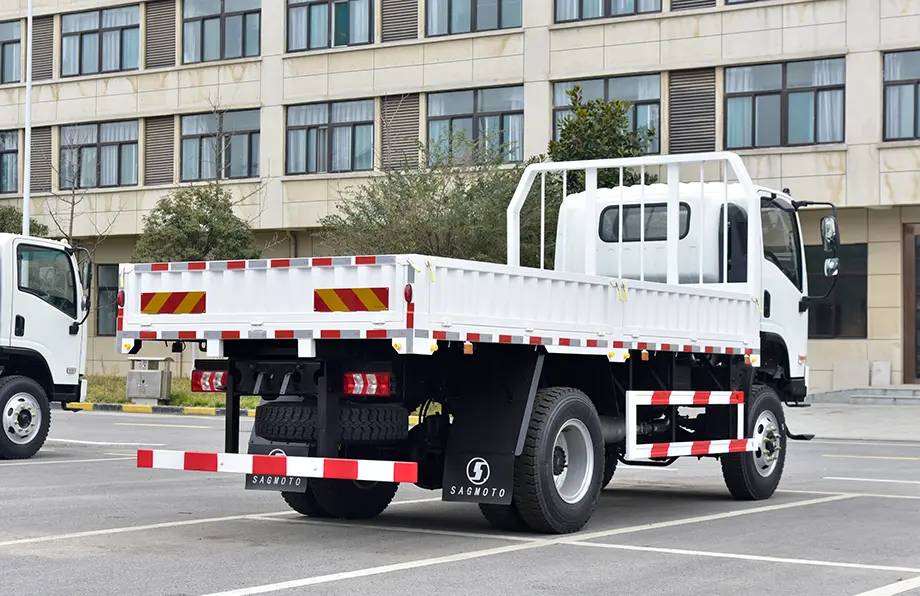

Shacman X9 4×4 Light Flatbed Cargo Truck-2

Shacman X9 4×4 Light Flatbed Cargo Truck

Model – SX1090GP3381

Engine power – 105/141

Driving type – 4×4

Type of vehicle – Light Truck

Series – X9

Max. speed – 90 km/h

Tank volume – 130L

WhatAPp message

DESCRIPTION

In terms of power and handling, Shacman X9 4×4 Light Flatbed Cargo Truck has a displacement of 2.5L, and the engine is a Yunnai-powered 4-cylinder diesel inline, with a 4X4 drive form, capable of bursting out 143 horsepower data. The transmission is a mature Foster manual with 6 gears, and the power performance is quite spacious and stable. After being tuned by SHACMAN’s exquisite tuning skills, the transmission and the engine become a match made in heaven.

Shacman X9 4×4 Light Flatbed Cargo Truck Key Features

Drive Type & Capacity: The Shacman X9 is available in 4×2 configuration with a load capacity of 5-10 tons. For 4×4 models (though not detailed), typical light flatbed trucks may offer enhanced off-road capability, suitable for rugged terrain.
Engine & Performance: Equipped with diesel engines (e.g., 115-140hp) meeting emission standards like Euro II or Euro III. Transmission options include manual gearboxes with 6 forward gears for efficient power control.

Shacman X9 4×4 Light Flatbed Cargo Truck Design & Customization

Cabin: Single-row cabin with air conditioning for driver comfort.
Flatbed Dimensions: Customizable cargo body sizes (e.g., 4200×2100×600mm for 4×2 models) can be adapted for flatbed use.
Tires & Axles: Front/rear axles rated at 2.5ton/5ton, paired with durable tires (e.g., 7.50R16) for load stability.

CHARACTERISTICS

Truck Name		Shacman X9 4×4 Light Flatbed Cargo Truck
Model		SX1090GP3381
Drive type	4×4
Weight	Complete kerb mass(kg)	3200
Weight	Gross Combination Weight (kg)	8500
Dimensions	Overall dimensions (LxWxH)(mm)	6800x2200x2460
Dimensions	Wheelbase(mm)	3800
Performance	Maximum speed(km/h)	90
	Minimum turning radius(m)	8
	Maximum gradeability(%)	25%
Engine	Brand	CUMMINS
	Model	ISF3.8s3141
	Power(kw/HP)	105/141
	Maximum torque(N.m)/rpm	320/1200-2200
	Displacement(L)	3.76
	Emission standard	Euro III
Gear box	Brand	FAST
	Model	6DS50T
	Maximum torque(N.m)/rpm	500/2600
Axles	Brand	SANHUAN
	Front axle	2500 KG
	Rear axle	6000 KG
Tires	Type	8.25R20
Fuel tank	Tank capacity(L)	130L

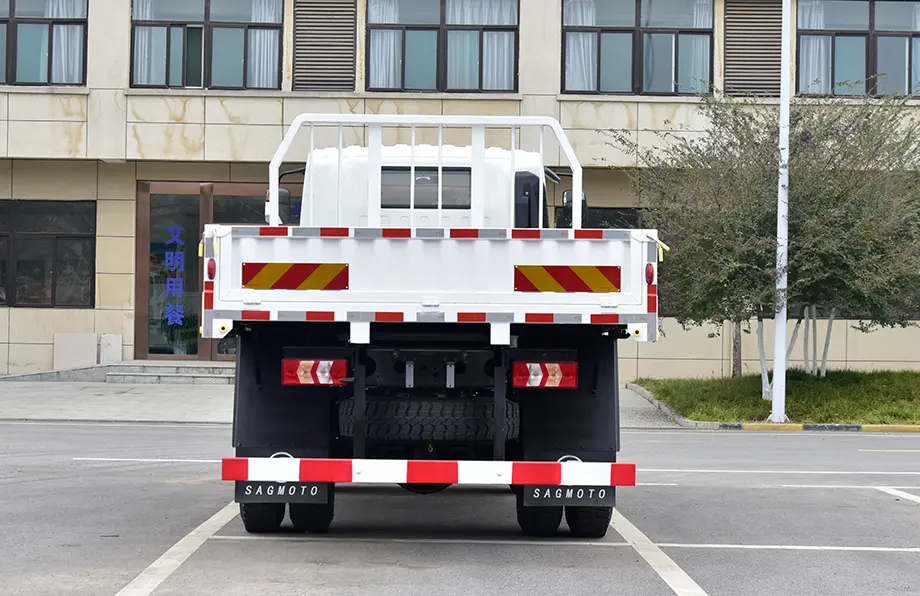

Shacman X9 4×4 Light Flatbed Cargo Truck-6

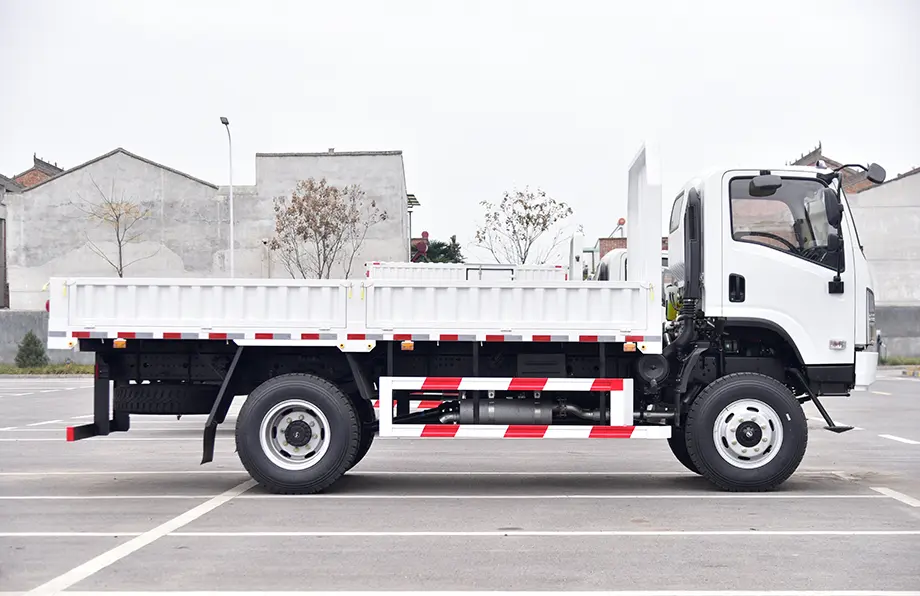

Shacman X9 4×4 Light Flatbed Cargo Truck-4
