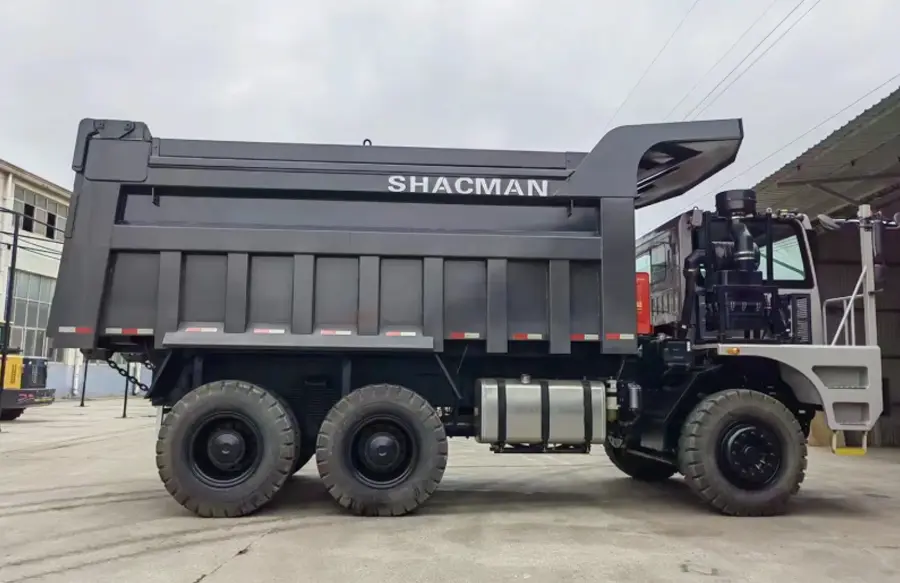

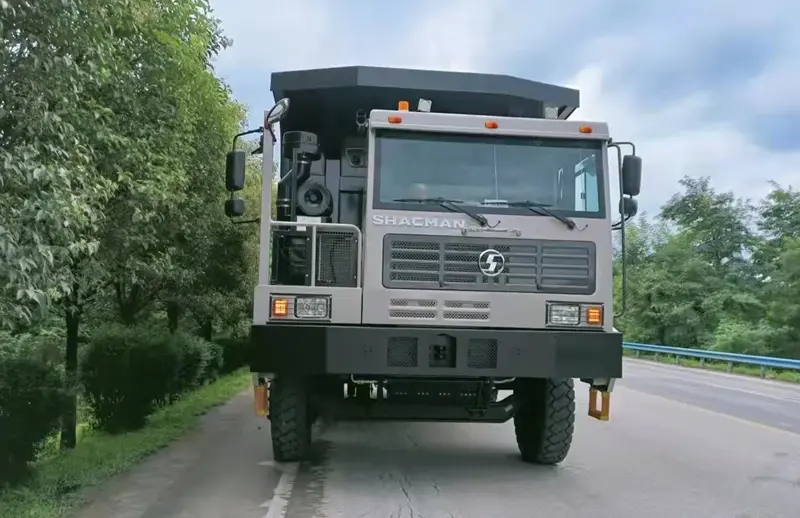

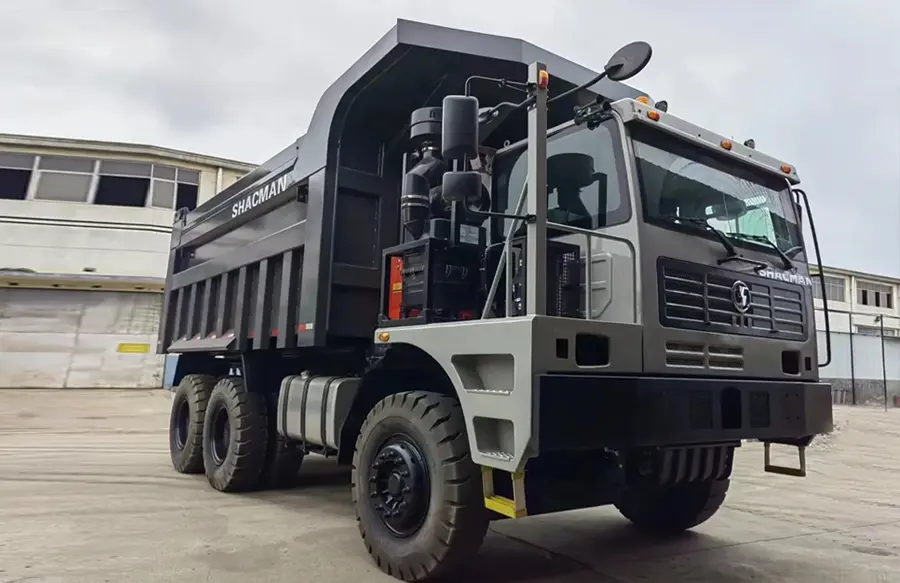

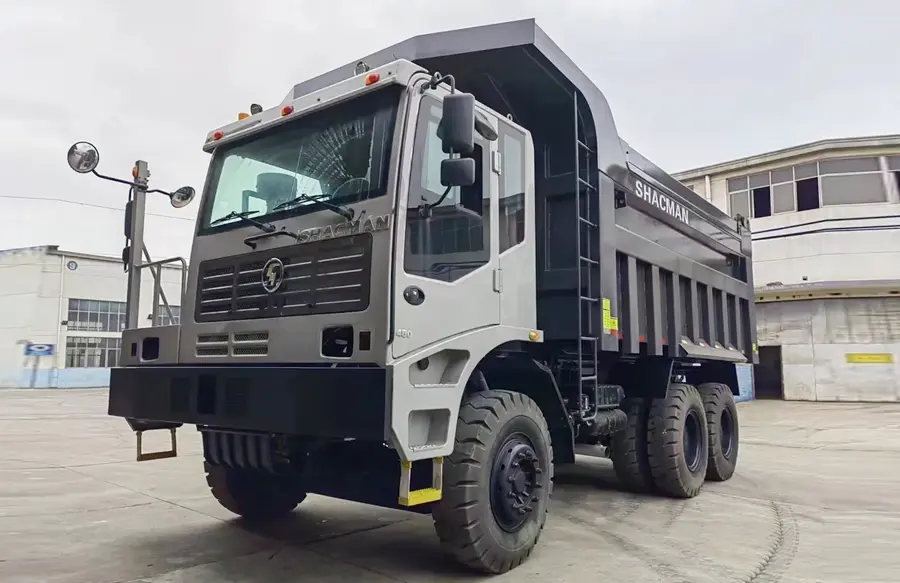

Introducing the Shacman 6×4 90-Ton Mining Dump Truck: Powerhouse for Heavy-Duty Operations
The Shacman 6×4 90-ton Mining Dump Truck (often referenced as the STL390 model) is a robust off-highway vehicle engineered specifically for the demanding environments of large-scale mining operations. Designed to efficiently transport massive payloads of ore, overburden, or coal, this truck prioritizes durability, power, and load capacity to maximize productivity in challenging terrains.
Powerful Engine & Drivetrain:
Equipped with a high-torque 480 HP engine providing the necessary muscle to move fully loaded under tough conditions.
Features a robust manual transmission (Fast 8DS240A gearbox) specifically chosen for reliability and control in heavy-duty, off-road applications.
The 6×4 drive configuration ensures superior traction and mobility on loose, uneven, or steep surfaces common in mining sites.

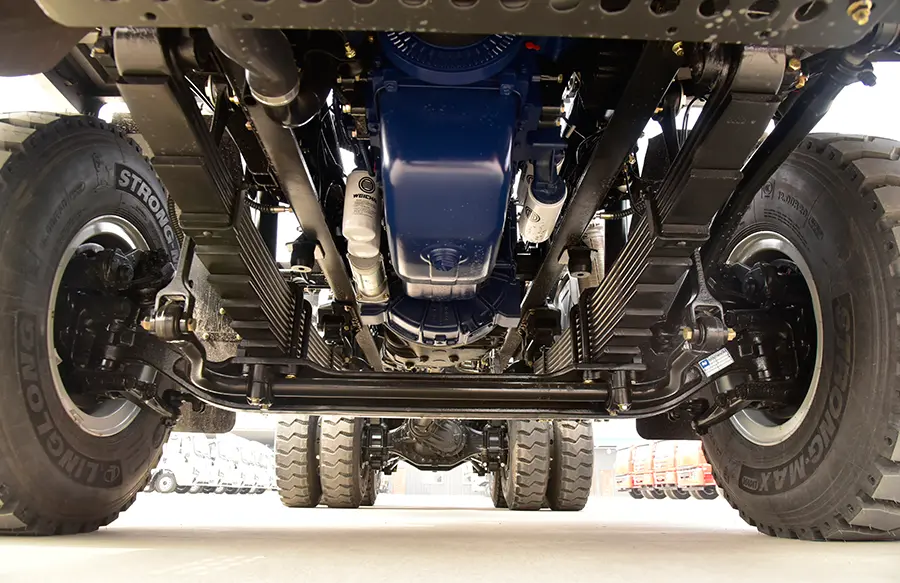

Durable Chassis & Axles:
Built on a reinforced chassis designed to withstand the constant stress of heavy loads and rough terrain.
Utilizes heavy-duty mining axles (Hande front 25T, middle and rear 35T axles) engineered for extreme load-bearing capacity and longevity.
| Truck Name | Shacman 6×4 90ton Mining Dump Truck |
| Type of vehicle | STL380 |
| Drive | 6×4 |
| Curb weight(kg) | 29000 |
| Ratedtotalweight(kg) | 89000 |
| Design of outside dimension(mm) | 8970x3504x4250/8970x3504x4270 |
| Maximum speed(Km/h) | 40/51 |
| Minimum ground clearance(mm) | 330 |
| Maximum grade ability(%) | ≥40 |
| Wheelbase(mm) | 3850+1560 |
| Cab | Offset mining cab |

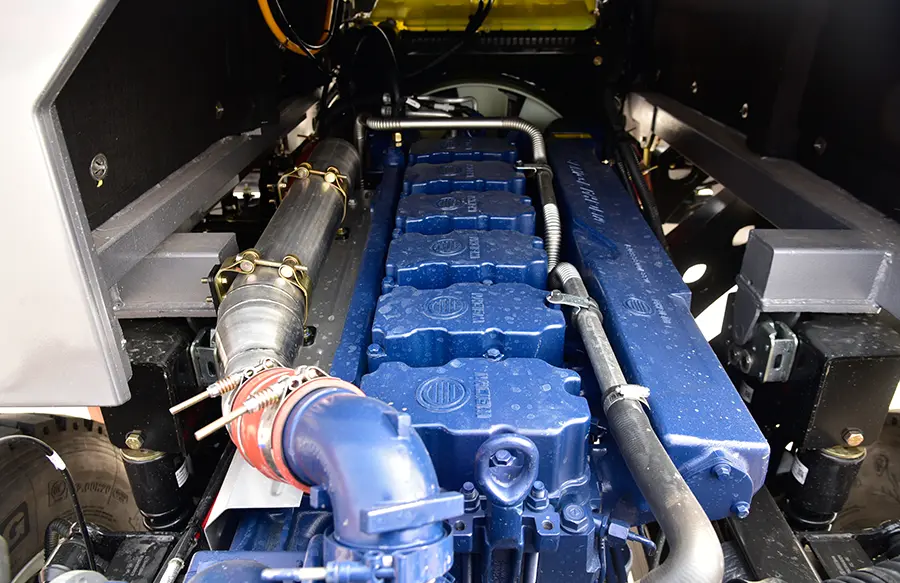

| Engine type | QSM11(C420 30)QSM11(C420 30) WP12G430E310 |
| (N.m/rpm)Maximumtorque/speed(N.m/rpm) | 1898/1400 1100/1500 |
| Emission standard | Three-stage |
| Transmission | Fast7SD220 |
| Front axle | Hand/PX20T/19T |
| Rear axles | Hand/PX 35T x2 |
| Frame(mm) | Duallayer(10mm+10mm) |
| Capacityoffueltank(L) | 450L Aluminium alloy |
| Tire | 14.00-25 |
| Inner dimension of loading space(mm) | 5800x3200x1800 |
| Material thickness of loading(mm) | Bottom16,Side12, |
| Lifting mode | Multistage front lifting hydraulic system |
