Shacman 80ton Off-Road Mining Truck

Shacman 80ton Off-Road Mining Truck

Model – STL380
Type of vehicle – Dump Truck
Engine Capacity – 11.596L
Engine – 370hp/247kw
Tire Quantity – 10
Maximum Speed – 45(km/h)
Overall dimension – 8620x3250x3950(mm)
DESCRIPTION
Shacman 80ton Off-Road Mining Truck

Shacman is the international brand name of Shaanxi Automobile Group, a prominent Chinese automaker specializing in commercial vehicles. While specific details about an 80-ton model aren’t explicitly provided in the available sources, Shacman’s mining truck lineup, such as the Kingway 70 Ton Mining Dump Truck, showcases robust engineering tailored for heavy-duty off-road applications. These Shacman 80ton Off-Road Mining Truck are designed to excel in harsh mining environments, offering exceptional load capacity, durability, and reliability.

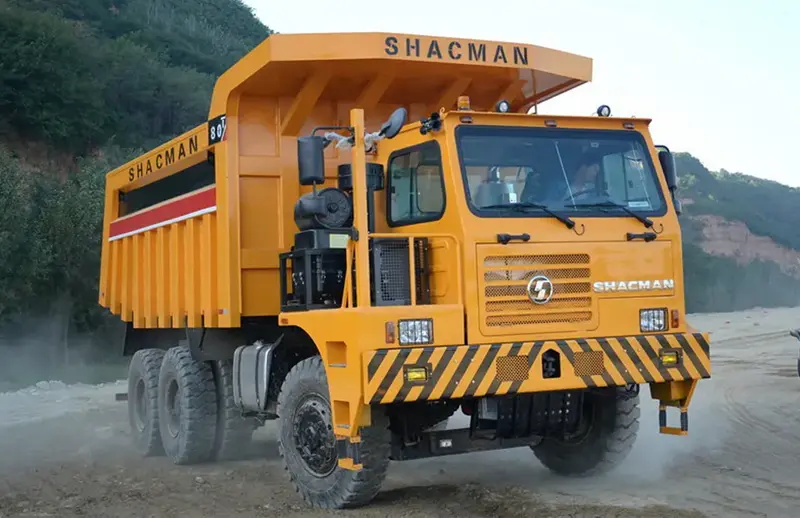

Shacman 80ton Off-Road Truck-2
Shacman 80ton Off-Road Mining Truck Key Features
  • Powerful Performance: Equipped with high-capacity engines, Shacman mining trucks deliver the torque and horsepower required to haul heavy loads over rough terrain. For instance, the Kingway 70 Ton model is built with a heavy-duty engine optimized for mining transportation.
  • Durable Construction: The trucks feature a rugged chassis and reinforced cargo body to withstand the rigors of off-road mining operations. The cargo tank dimensions, often ranging from 6.2 to 8 meters in length, are engineered to maximize load efficiency while maintaining structural integrity.

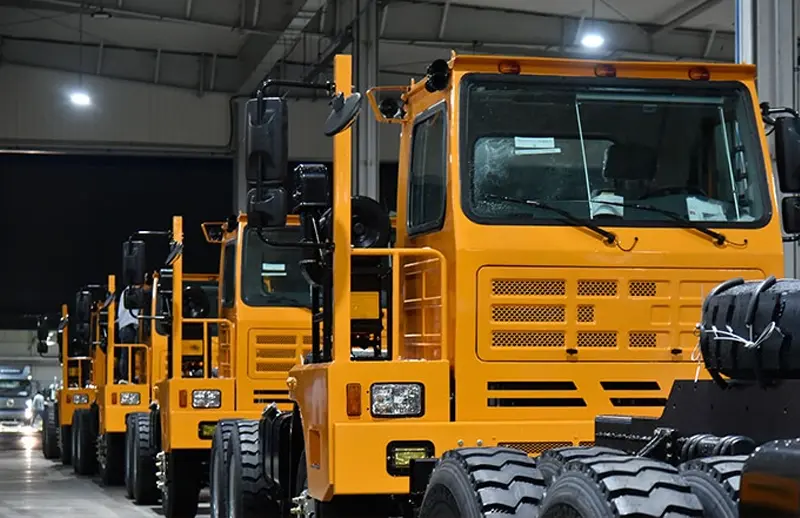

Shacman 80ton Off-Road Truck-1
SHACMAN 80TON OFF-ROAD MINING TRUCK
  • Advanced Safety Systems: While specific safety features for an 80-ton model aren’t detailed, Shacman’s focus on quality and compliance with international standards suggests the inclusion of essential systems like Electronic Stability Control (ESC) to enhance stability during operation.
  • Comprehensive Support Services: Shacman provides extensive after-sales support, including overseas call centers, field installation, commissioning, training, and maintenance services, ensuring minimal downtime for mining operations.

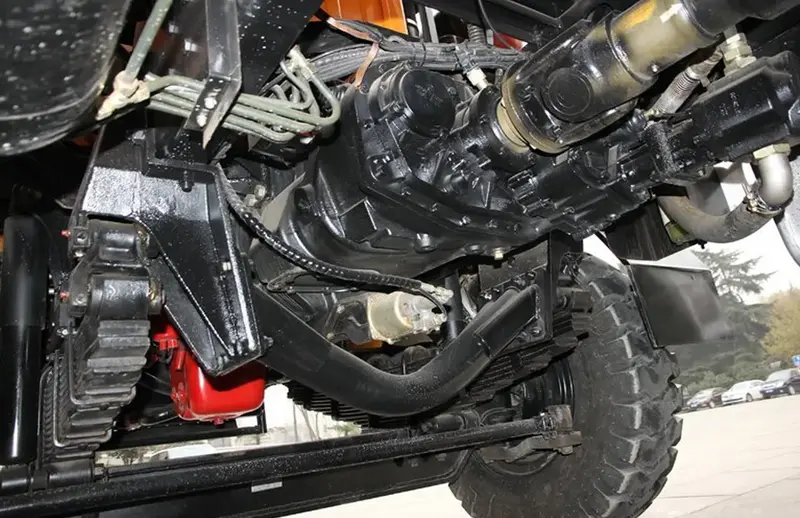

Shacman 80ton Off-Road Truck-7
CHARACTERISTICS
Truck Name Shacman 80ton Off-Road Mining Truck
Brand Shacman
Model STL380
Driver Form 6×4
Rear Axle Speed Ratio 5.92
Engine Capacity 11.596L
Max Output 370hp/247kw
Engine WD12.336
Euro 2
Transmission FAST 9JSD180
Manual
Wheelbase 3750+1560mm
Tire Quantity 10
Tire specifications 14.00-24
Truck Size 8620x3250x3950(mm)
Trunk Size 5600x3000x1500(mm)
Fuel Tank Aluminum Alloy/500L
Front track 2370mm
Suspension form Leaf Spring
Max Speed 45km/h
Max Torque Speed 1300-1600rpm
Rated Speed 1350rpm
Vehicle Weight 24ton
Rated Load 39ton
Total Mass 62ton
Allowable Load of Axle 12000/25000kg
Rear track 2198mm
Logistics Type Dregs/Sand/Stone
Shacman 80ton Off-Road Truck-1
Shacman 80ton Off-Road Truck-2

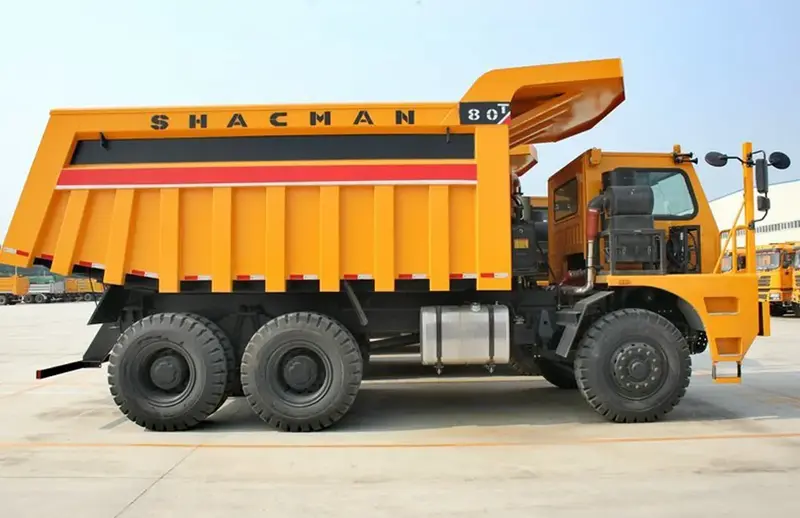

Shacman 80ton Off-Road Truck-4

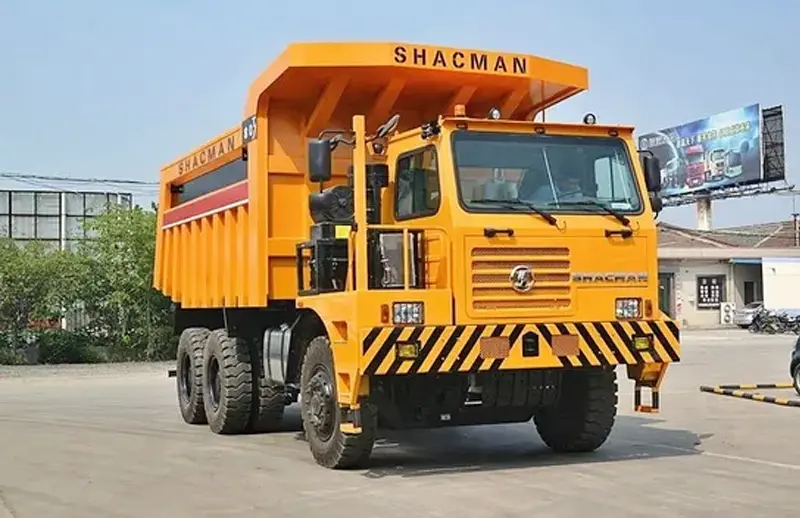

Shacman 80ton Off-Road Truck-3

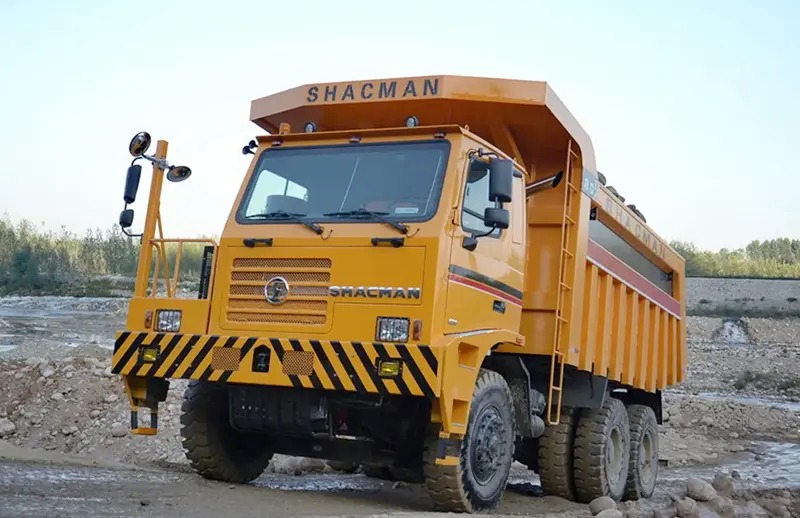

Shacman 80ton Off-Road Truck-5

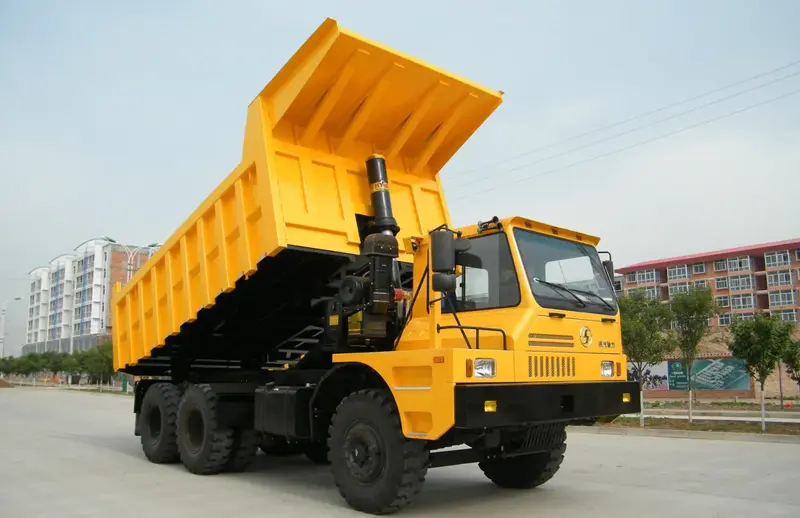

Shacman 80ton Off-Road Truck-6
