Shacman 4x2 Offset Dock Truck

Shacman 4x2 Offset Dock Truck

Model – SX4183P1K22J3210
Drive – 4×2
Type of vehicle – Offset Dock Truck
GCW – ≤80t
Engine – QSB6.7-C220-30
Wheelbase – 3200 mm
Capacity offuel tank – 260L
DESCRIPTION
Shacman 4x2 Offset Dock Truck

Based on the search results, there is no direct information about the “Shacman 4×2 Offset Dock Truck”. However, we can infer some possible characteristics and highlights of such a truck by referring to the features of other Shacman 4×2 models. Shacman is a well-known Chinese truck manufacturer that offers a variety of commercial vehicles, including wreckers, dump trucks, and tractor trucks.The 4×2 drive type indicates that it has two axles, with the rear axle being the driving axle, which is suitable for light to medium-duty applications. An Offset Dock Truck is typically designed for loading and unloading operations at docks or warehouses, with an offset cab to provide better visibility for the driver when approaching the dock.

Shacman 4×2 Offset Dock Truck-1
Shacman 4x2 Offset Dock Truck Key Features
  • Maneuverability: The 4×2 drive configuration makes the truck more maneuverable, especially in tight spaces such as docks and warehouses. This allows for easier positioning when loading and unloading goods .
  • Visibility: The offset cab design provides the driver with excellent visibility, reducing blind spots and improving safety during dock operations. This is crucial for accurate alignment with the dock and safe handling of cargo.

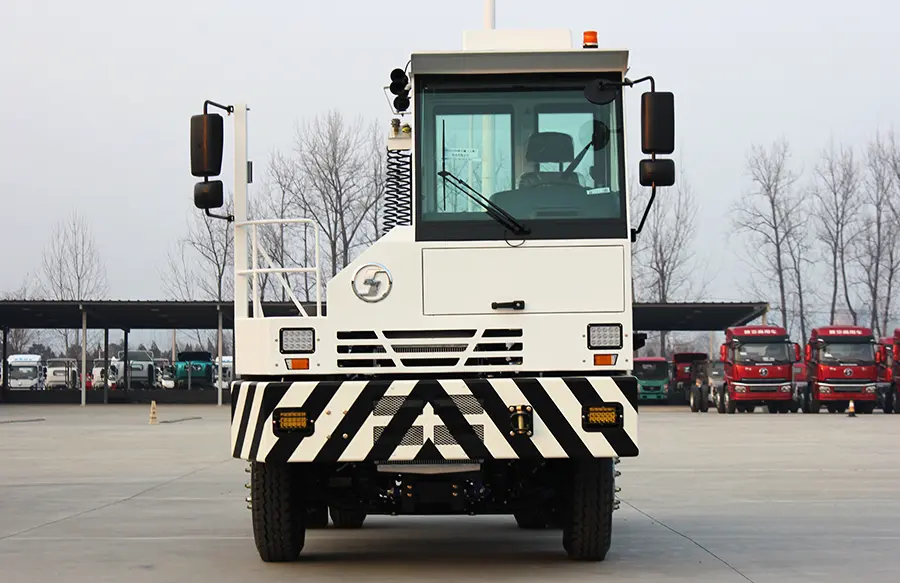

Shacman 4×2 Offset Dock Truck-3
SHACMAN 4X2 OFFSET DOCK TRUCK
  • Load Capacity: Although specific load capacity data for the Offset Dock Truck is not available, other Shacman 4×2 models have load capacities ranging from 4 tons to 10 tons . It can be expected that the Offset Dock Truck would have a suitable load capacity for dock operations, depending on the specific model.
  • Reliable Engine: Shacman trucks are equipped with reliable engines, such as the WP10.300E22 EuroⅡ engine in some models . A powerful and fuel-efficient engine would ensure the truck can handle the demands of dock operations.

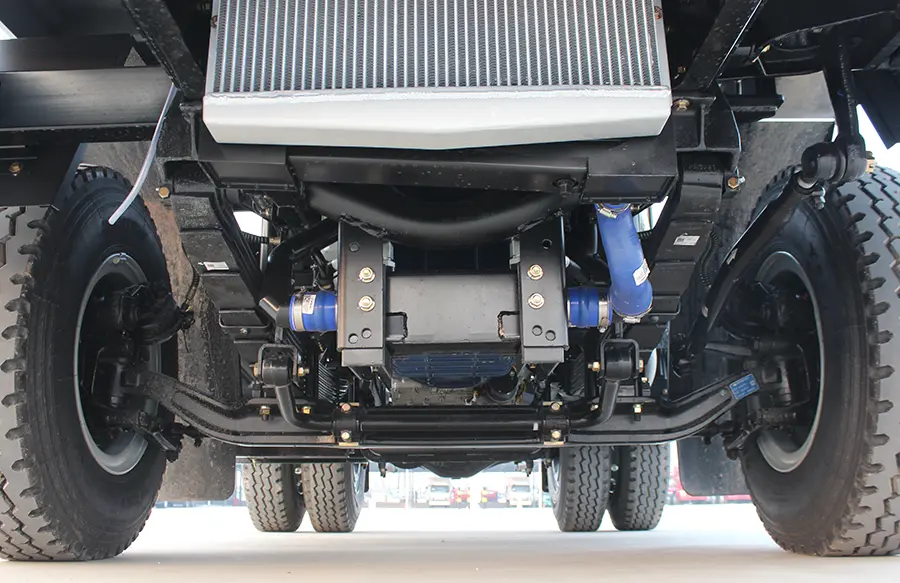

Shacman 4×2 Offset Dock Truck-6
CHARACTERISTICS
Truck Name Shacman 4×2 Offset Dock Truck
Model SX4183P1K22J3210
Drive 4×2
GCW ≤80t
Body(mm) Offset single-sided cab
Engine Model QSB6.7-C220-30
Displacement L 6.7
Torque N·m 950
Horsepower 220
Emission Euro Ill
Wheelbase (mm) 3200
Frame (mm) 1100×300
Gearbox Model Allison 3500P
Gear 6 forward gears and 1 reverse gear
Front axle 7.5T
Rear axle 16t/11.98
Suspension Front leaf spring and rear air susp ension
Wheel 310/80R22.5
tank 260L/aluminum
Other configurations Top air conditioning, ordinary steering wheel, sliding window glass, electric flip, composite air filter, gas control,

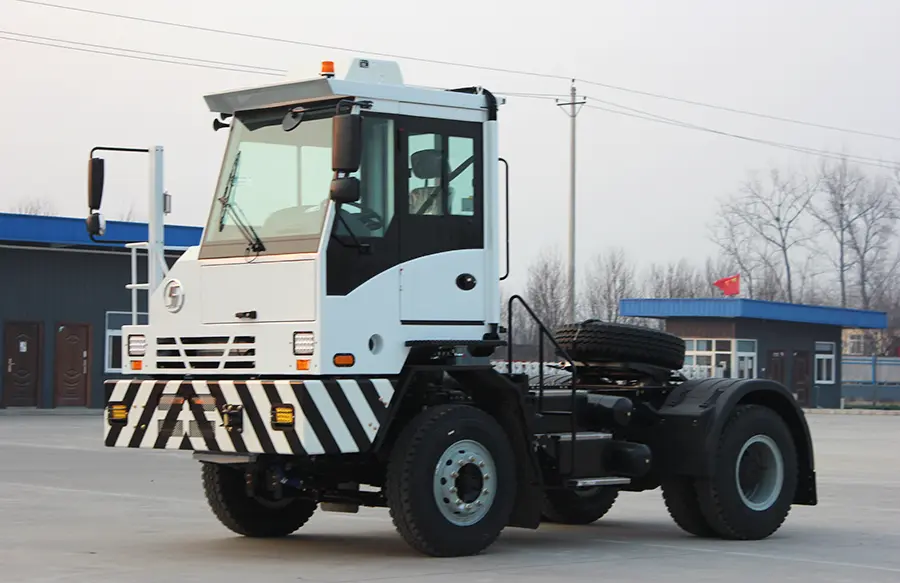

Shacman 4×2 Offset Dock Truck-1

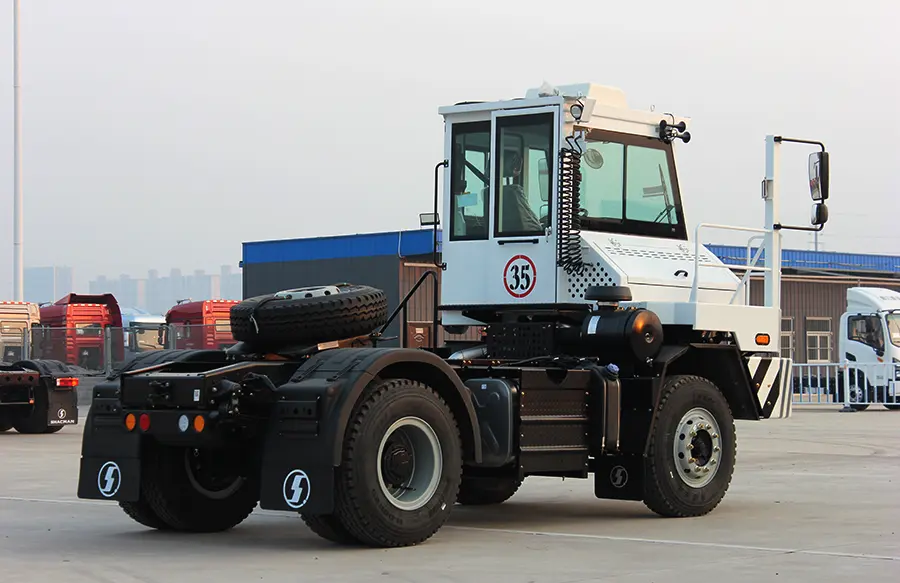

Shacman 4×2 Offset Dock Truck-2
Shacman 4×2 Offset Dock Truck-3

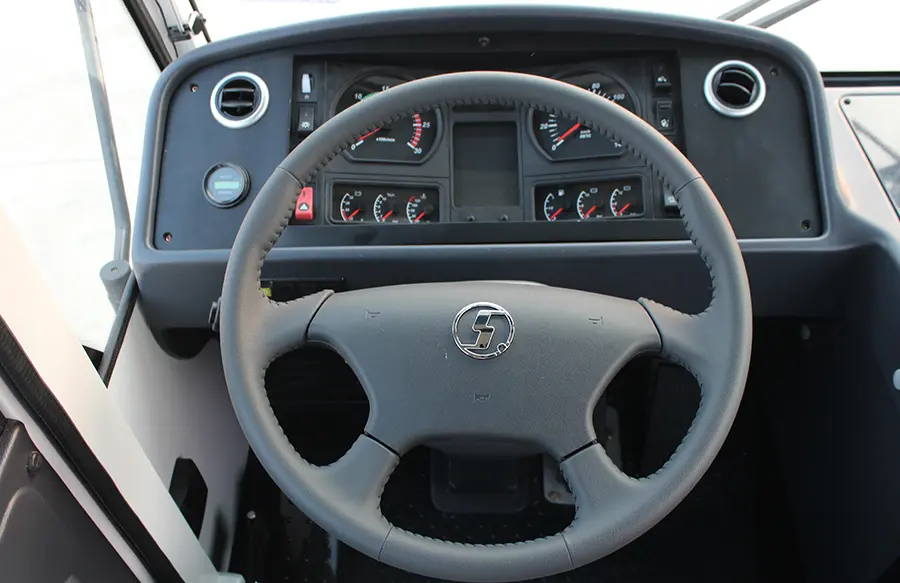

Shacman 4×2 Offset Dock Truck-4

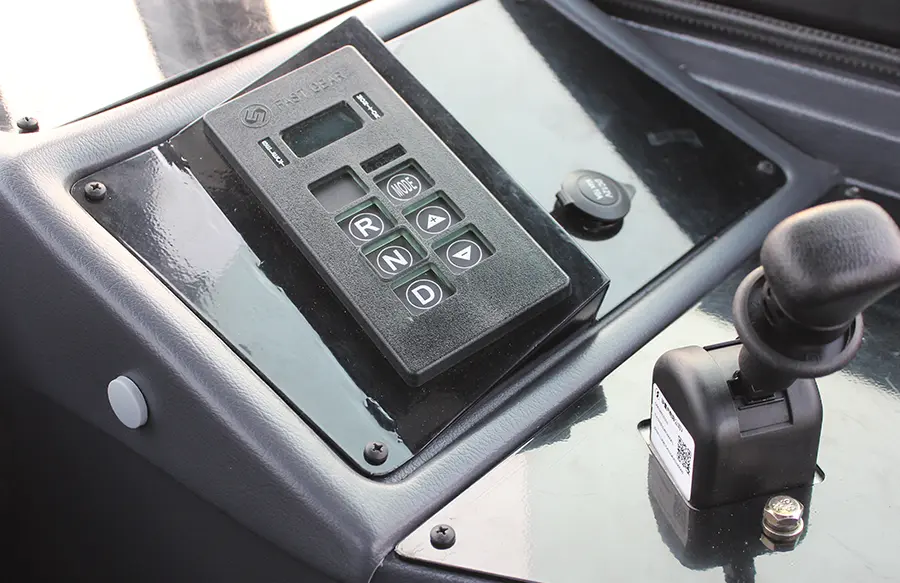

Shacman 4×2 Offset Dock Truck-5
